The Pisces-Cetus Superclusters

The superclusters in the Pisces-Cetus area of the sky are very large structures that together stretch across a billion light years of space (and 50 degrees of the sky). At an average distance of 800 million light years, they are also very faint. On this plot of galaxies brighter than magnitude 16 (from the HyperLeda database), the superclusters are hard to see because of the huge quantities of foreground galaxies. The major clusters of galaxies which are marked on this plot reveal the true extent of these superclusters.

The Pisces-Cetus Superclusters

Below is a list of the major clusters of galaxies in the Pisces-Cetus Superclusters. These are the clusters in the three main supercluster regions. There are several other major clusters of galaxies not included in this list which can also be found in this region. The Pisces-Cetus region of the sky is rich in galaxy clusters.

   1           2       3        4         5       6      7
 Abell         Equatorial    Redshift  Distance  Rich  Notes
 Number       Coordinates       z        Mly
              RA       Dec
   A76      00 39.8  +06 46   .0393      540      0
  A119      00 56.4  -01 16   .0430      590      1
  A147      01 08.2  +02 10   .0435      595      0
  A160      01 12.9  +15 31   .0435      595      0
  A168      01 15.2  +00 15   .0438      600      2
  A193      01 25.1  +08 42   .0476      650      1
  A195      01 26.9  +19 11   .0418      570      0

 A2660      23 45.3  -25 58   .0513      700      0
 A4049      23 51.6  -28 22   .0636      860      0
 A4053      23 54.8  -27 40   .0708      955      1
 A2683      23 57.6  -25 33   .0719      970      0
 A2716      00 02.9  -27 10   .0669      905      0
 A2734      00 11.3  -28 52   .0613      830      1
   A14      00 15.2  -23 53   .0643      870      0
   A27      00 24.8  -20 42   .0530      720      0
 A2794      00 36.6  -31 01   .0608      825      1
 A2800      00 38.0  -25 06   .0624      845      1
   A74      00 38.9  -22 19   .0639      865      0
   A85      00 41.6  -09 21   .0543      740      1
   A86      00 42.5  -21 48   .0622      840      0
   A87      00 43.0  -09 48   .0538      730      1
 A2824      00 48.6  -21 21   .0570      775      0
  A114      00 53.7  -21 41   .0575      780      0
  A117      00 56.0  -10 02   .0523      710      0
  A121      00 57.5  -07 01   .0538      730      1
  A126      00 59.8  -14 13   .0534      725      1
  A133      01 02.6  -21 48   .0554      755      0
  A151      01 08.9  -15 25   .0521      710      1

  A150      01 09.2  +13 10   .0576      780      1
  A152      01 09.8  +13 59   .0569      770      0
  A154      01 11.0  +17 40   .0624      845      1
  A158      01 11.8  +16 53   .0633      855      0
  A171      01 16.8  +16 16   .0694      935      0
  A179      01 21.8  +19 29   .0535      725      0
  A225      01 38.9  +18 53   .0675      910      1
  A257      01 49.0  +13 59   .0691      930      1
  A292      02 02.5  +19 05   .0652      880      0
  A311      02 09.2  +19 43   .0649      875      0
Column 1: The name/number of the cluster.
Column 2: The Right Ascension for epoch 2000.
Column 3: The Declination for epoch 2000.
Column 4: The redshift of the cluster.
Column 5: The distance in millions of light years assuming H=70km/s/Mpc.
Column 6: The 'richness' class of the cluster.
Column 7: Additional names and notes.

References:
Abell G, Corwin H, Olowin R, (1989), A catalogue of Rich Clusters of Galaxies,
          Astrophys J Supp, 70, 1.
Struble M, Rood H, (1999), A compilation of redshifts and velocity dispersions for
          ACO clusters, Astrophys J, 125, 35.

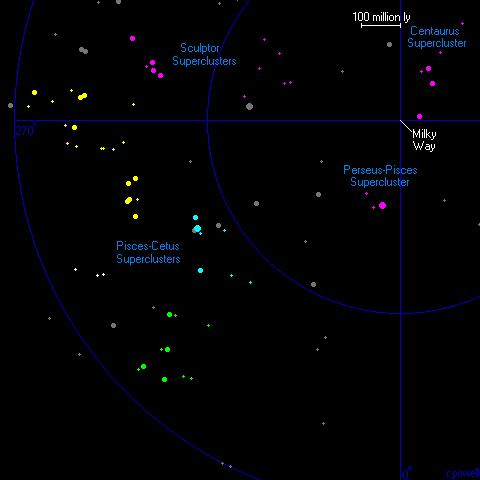

A Map of the Pisces-Cetus Superclusters

This is a map of the supergalactic plane out to a distance of 1 billion light years. Plotted onto this map are all of the rich clusters of galaxies which lie near this plane. The Pisces-Cetus superclusters (marked in blue, yellow and green) form long wall structures across a billion light years of space. Not shown on this map are the thousands of smaller groups of galaxies which are also found in these superclusters.



Below - a picture of the A151 cluster of galaxies which lies about 700 million light years away. This is one of many rich clusters of galaxies in the Pisces-Cetus region. The bright central galaxy (actually two very close galaxies) in this picture is IC 77.

A151 - from the Digitized Sky Survey

The Scientific Study of the Pisces-Cetus Superclusters

There has not been much research on the Pisces-Cetus superclusters. The superclusters were made famous by Brent Tully in several papers (1, 2, 3) published between 1986 and 1988. He tried to show that the Pisces-Cetus supercluster was contained in a much larger structure connecting many superclusters including the Virgo supercluster. This is true, but only because all superclusters are connected to each other through walls and sheets of galaxies. Brent Tully's 1986 paper also contains some maps of the Virgo supercluster.

In 1988, J Burns, J Moody, J Brodie and D Batuski studied some of the galaxies in this region. They surveyed the northern part of the Pisces-Cetus supercluster and published a map showing that in this region there are several large voids where very few galaxies exist.


A168 - from the Digitized Sky Survey

Above - a picture of the centre of the A168 cluster of galaxies. This is one of the richest clusters of galaxies in the Pisces-Cetus superclusters - it contains hundreds of galaxies.

The nearest superclusters Back to the Neighbouring Superclusters page
