NGC 2237, 2238, 2239 and 2246 - The Rosette Nebula

Although the Rosette nebula is not very bright - it is much too faint to see with the naked eye - it is famous mainly because it is a striking circular shape resembling a flower. The Rosette nebula is in the Perseus Arm of the Galaxy and has a young star cluster at the centre of it.

The Rosette Nebula
The Rosette Nebula. Image size: 1.8x1.6. DSS image. © CalTech/Palomar

The Nebulae associated with the Rosette Nebula

Four nebulae are listed in the NGC catalogue in the vicinity of the Rosette nebula although it is hard to determine precisely which parts of the Rosette Nebula they are meant to represent. They were all discovered visually in the eighteeth and nineteeth centuries before astronomers realised that there is only one nebula here. NGC 2239, for example seems to refer to a part of the nebula around the star 12 Monocerotis. The 'sizes' in this list refer to the entire nebula and not these individual parts.

   1              2              3          4     5       6      7        8
Catalogue    Equatorial      Galactic     Size   Type Distance Size  Other Names
Number       Coordinates    Coordinates (arcmins)       (ly)   (ly)
            RA (2000) Dec     l     b
--------------------------------------------------------------------------------------
NGC 2237   06 30.9  +05 03  206.1   -2.3    90'   E     4700    125  Rosette nebula
NGC 2238   06 30.7  +05 01  206.1   -2.3    90'   E     4700    125  Rosette nebula
NGC 2239   06 31.9  +04 57  206.3   -2.1    90'   E     4700    125  Rosette nebula
NGC 2246   06 32.6  +05 08  206.2   -1.8    90'   E     4700    125  Rosette nebula
Column 1: The standard catalogue name for the nebula.
Column 2: Right Ascension and Declination for epoch 2000.
Column 3: Galactic Longitude (l) and Latitude (b).
Column 4: Angular size of the nebula in arcminutes.
Column 5: Nebula type: E = emission, R = reflection.
Column 6: Approximate distance to the nebula.
Column 7: Approximate size of the nebula in light years.
Column 8: Alternative name of the nebula.

Star clusters associated with the Rosette Nebula

The only star cluster which is definitely associated with the Rosette nebula is NGC 2244 at the centre of the nebula. This cluster was discovered by William Herschel in 1784. NGC 2186 is also in this list because although it is 5 degrees (and 400 light years) from Rosette nebula it is at the same distance from us. NGC 2252 at the northwest of the nebula may also be part of the nebula, although it has an unknown distance.

   1                2              3          4        5       6          7
Catalogue      Equatorial      Galactic     Size   Distance   Age    Other Names
Name           Coordinates    Coordinates (arcmins)  (ly)  (million
              RA (2000) Dec     l    b                     years)
-------------------------------------------------------------------------------
NGC 2186     06 12.2  +05 28  203.6  -6.2     5'     4700      55
NGC 2244     06 32.0  +04 57  206.3  -2.1    29'     4700       8
NGC 2252     06 34.8  +05 22  206.2  -1.3    18'       ?        ?
Column 1: The standard catalogue name for the cluster.
Column 2: Right Ascension and Declination for epoch 2000.
Column 3: Galactic Longitude (l) and Latitude (b).
Column 4: Angular size of the cluster in arcminutes.
Column 5: Distance to the cluster.
Column 6: Approximate age of the cluster in millions of years.
Column 7: Alternative name of the cluster.

References: Dias W, Alessi B, Moitinho A, Lpine J, (2002). New catalogue of optically
            visible open clusters and candidates. Astron and Astrophys, 389, 871.

A Map of the Rosette Nebula

Below is a map of the Rosette Nebula. The principal parts of this nebula are labelled and the locations of the two main star clusters are also marked. Note also that the Rosette Nebula lies at the right end of a much fainter emission nebula that extends across three degrees of the sky.

A map of the Rosette nebula

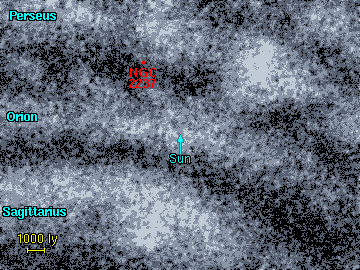

The location of the Rosette Nebula

The location of the Rosette nebula The distance to the Rosette nebula is well known because there is a star cluster at the centre of the Rosette nebula which makes determining the distance much easier. The Rosette nebula is 4700 light years away and lies in the near side of the Perseus Arm.

NGC 2244

At the centre of the Rosette nebula is the NGC 2244 cluster. This young, bright cluster is responsible for creating the hole at the centre of the nebula. The intense radiation from the stars has blasted away the gas around them. This picture has a diameter of about 40 light years.
NGC2244
NGC 2244. Image size: 0.5x0.5. DSS image.
Dust lanes in the Rosette nebula
Dust lanes in NGC 2237. Image size: 0.15x0.10. DSS image.

Dust lanes in the Rosette Nebula

This close-up view of part of the Rosette nebula reveals large clumps of dust. This picture has a width of approximately 10 light years.
