M8 and M20 - The Lagoon and Trifid Nebulae

The Lagoon and Trifid nebulae are two very famous nebulae in Sagittarius, and both nebulae can be glimpsed with the naked eye (from a dark site), and they are easy to see with binoculars. This picture shows these two nebulae against the background of the dense star fields of the Sagittarius Arm of the Galaxy. The Lagoon nebula (M8) is the larger (and brighter) nebula to the south of the smaller Trifid nebula (M20).

The Lagoon and Trifid Nebulae
M8 and M20. Image size: 2.8°x2.1°. DSS image. © AAO/ROE

The Nebulae associated with the Lagoon and Trifid Nebulae

This is a list of the nebulae in this region. The only major nebulae here are the Trifid and Lagoon nebulae. All of the other nebulae in this list are bright nebulous patches associated with the Lagoon nebula. The distance to the Trifid nebula is very uncertain. It is associated with a star cluster, but distance estimates to this star cluster vary enormously from 2700 to over 5200 light years. A distance of about 4000 light years is probably a reasonable distance for both the nebula and the star cluster.

   1              2              3          4     5       6      7        8
Catalogue    Equatorial      Galactic     Size   Type Distance Size  Other Names
Number       Coordinates    Coordinates (arcmins)       (ly)   (ly)
            RA (2000) Dec     l°     b°
---------------------------------------------------------------------------------------
NGC 6514   18 02.3  -23 02    7.0   -0.2    20'   RE    4000     25  M20, Trifid nebula
NGC 6523   18 03.8  -24 23    6.0   -1.2    45'   E     4350     55  M8, Lagoon nebula
NGC 6526   18 04.1  -24 26    6.0   -1.3    40'   E     4350     50  NGC 6533
IC 1271    18 05.2  -24 25    6.1   -1.5    20'   E     4350     25
IC 4678    18 06.6  -23 57    6.7   -1.6    30'   E     4350     35
IC 4681    18 09.1  -23 26    7.4   -1.8     3'   E     4350      4  IC 4684
IC 1274    18 09.8  -23 39    7.3   -2.0     6'   E     4350      8  IC 1275
NGC 6559   18 10.0  -24 07    6.9   -2.3     8'   E     4350     10
Column 1: The standard catalogue name for the nebula.
Column 2: Right Ascension and Declination for epoch 2000.
Column 3: Galactic Longitude (l) and Latitude (b).
Column 4: Angular size of the nebula in arcminutes.
Column 5: Nebula type: E = emission, R = reflection.
Column 6: Approximate distance to the nebula.
Column 7: Approximate size of the nebula in light years.
Column 8: Alternative name of the nebula.

Star clusters associated with the Lagoon and Trifid Nebulae

This is a list of the star clusters which are probably nearest to these two nebulae. NGC 6514 is the star cluster associated with the Trifid nebula, and NGC 6530 is the star cluster associated with the Lagoon nebula. Recent star cluster catalogues put NGC 6514 at a distance of only about 2700 light years. However if it was at this distance, then the main sequence stars in the cluster should be about 1 magnitude brighter than those in NGC 6530 - I can find no evidence that this is true and a distance of 4000 to 5000 light years may be more reasonable (although the presence of dust in this region makes it difficult to be certain).

   1               2              3          4        5       6          7
Catalogue     Equatorial      Galactic     Size   Distance   Age    Other Names
Name          Coordinates    Coordinates (arcmins)  (ly)  (million
             RA (2000) Dec     l°    b°                     years)
---------------------------------------------------------------------------------
NGC 6469    17 53.3  -22 17    6.6  +2.0     7'       ?        ?
NGC 6506    17 59.9  -24 41    5.3  -0.6     5'       ?        ?    Ruprecht 138
Trumpler 31 17 59.9  -28 10    2.2  -2.3     5'     3200     740
Bochum 14   18 02.0  -23 41    6.4  -0.5     2'     1900      10
NGC 6514    18 02.8  -22 58    7.1  -0.3    28'     2650      23    M20
NGC 6520    18 03.5  -27 53    2.9  -2.8     5'     5150      53
NGC 6531    18 04.3  -22 29    7.7  -0.4    14'     3950      12    M21
NGC 6530    18 04.6  -24 22    6.1  -1.3    14'     4350       7
NGC 6546    18 07.4  -23 18    7.3  -1.4    14'     3050      71
IC 4685     18 09.3  -23 59    7.0  -2.2    39'       ?        ?    Collinder 367
NGC 6568    18 12.8  -21 36    9.4  -1.7    12'       ?        ?
NGC 6583    18 15.9  -22 08    9.3  -2.5     5'       ?        ?
Column 1: The standard catalogue name for the cluster.
Column 2: Right Ascension and Declination for epoch 2000.
Column 3: Galactic Longitude (l) and Latitude (b).
Column 4: Angular size of the cluster in arcminutes.
Column 5: Distance to the cluster.
Column 6: Approximate age of the cluster in millions of years.
Column 7: Alternative name of the cluster.

References: Dias W, Alessi B, Moitinho A, Lépine J, (2002). New catalogue of optically
            visible open clusters and candidates. Astron and Astrophys, 389, 871.

A Map of the Lagoon and Trifid Nebulae

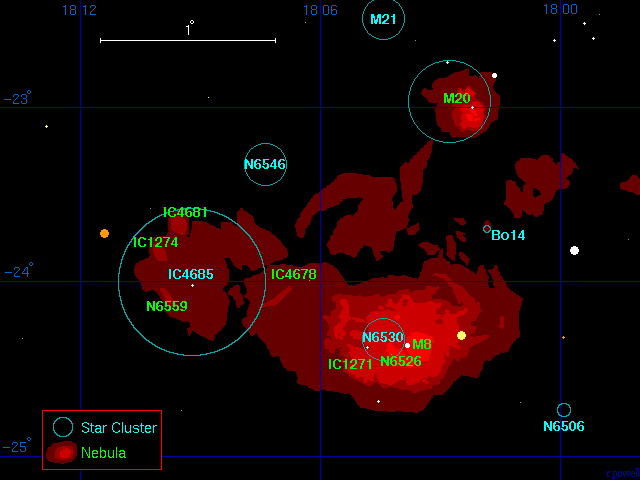

Below is a map of these two nebulae. The Lagoon nebula (M8) is spread across about two degrees of the sky (about 150 light years). The nearby Trifid nebula (M20) is much smaller and it is also known to be part of a separate molecular cloud.

A map of the Lagoon and Trifid Nebulae

The Lagoon Nebula

This is a picture of the Lagoon nebula. This is the bright central region of the Lagoon nebula. If the nebula has a distance of 4300 light years then this photograph has a width of about 75 light years. The Lagoon nebula glows mainly because of the presence of two massive naked-eye stars in the nebula (7 and 9 Sagittarii) which are responsible for ionising the gas.

The Lagoon Nebula
M8. Image size: 1.0°x0.75°. DSS image.

The location of the Lagoon and Trifid Nebulae

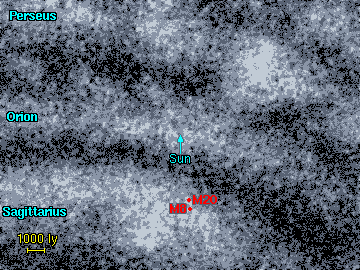

The location of the Lagoon and Trifid Nebulae The Lagoon and Trifid nebulae are both in the Sagittarius Arm of the Galaxy. The precise distance to the Trifid nebula is rather uncertain, but it is definitely within the Sagittarius Arm, and it is probably fairly close to the Lagoon nebula.

The Trifid Nebula

The Trifid nebula is a young and compact nebula with a diameter of about 25 light years (about 15000 times the diameter of our solar system). Dark dust lanes in the nebula appear to split the nebula into three parts. The bottom half of this nebula is a bright emission nebula with a distincive pink colour, but the top part of the nebula is reflection nebula with a characteristic blue colour. The Trifid Nebula
M20. Image size: 0.34°x0.35°. DSS image.
